RX-7 Series 2 Gearbox Teardown (13/4/2005)

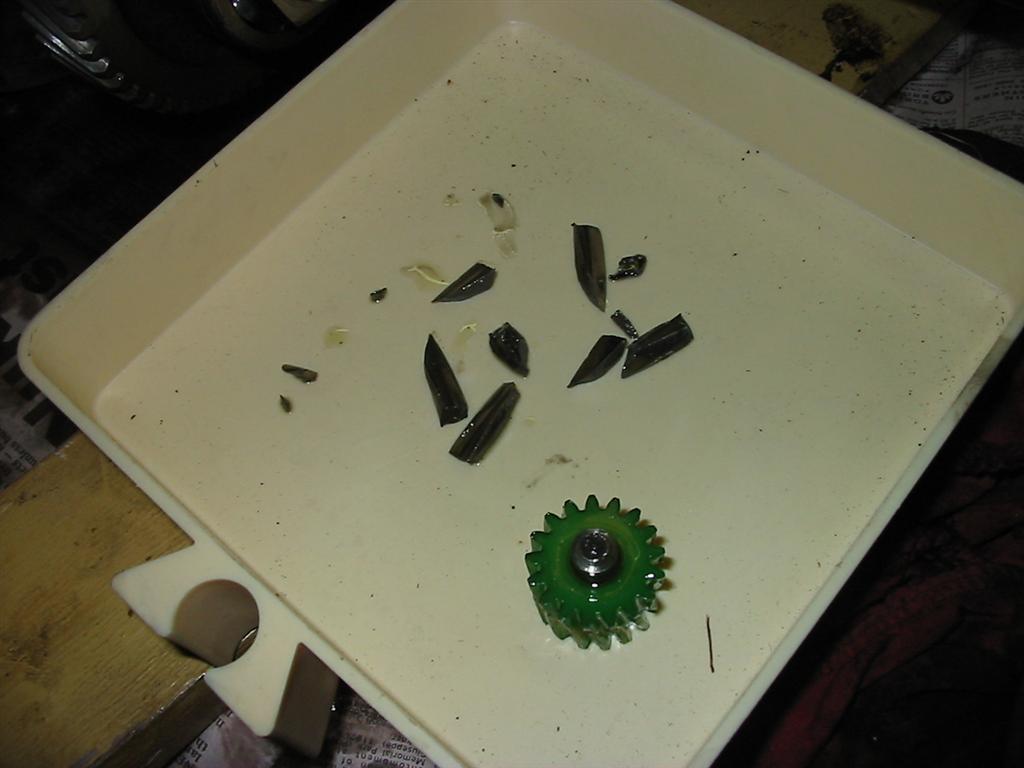

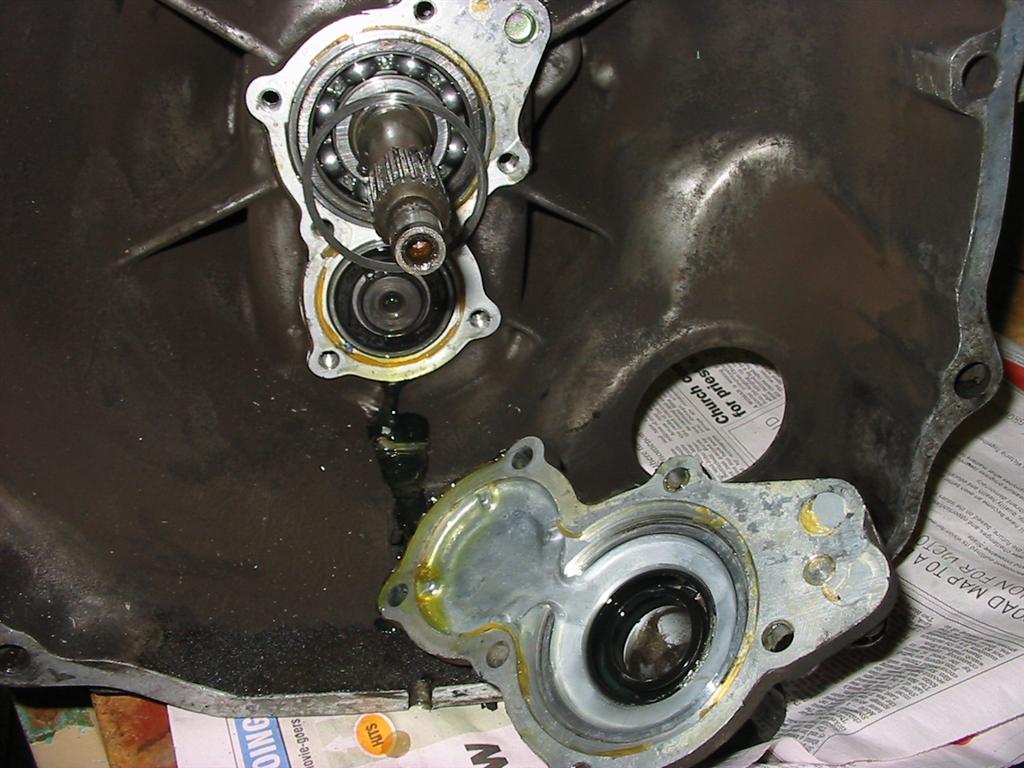

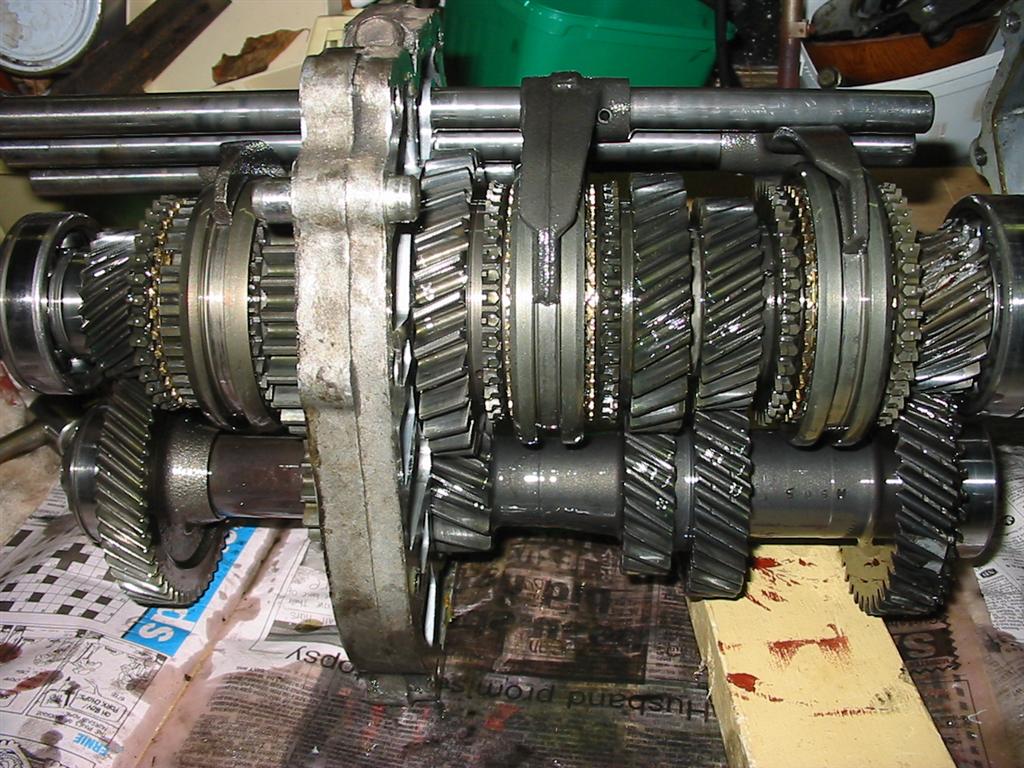

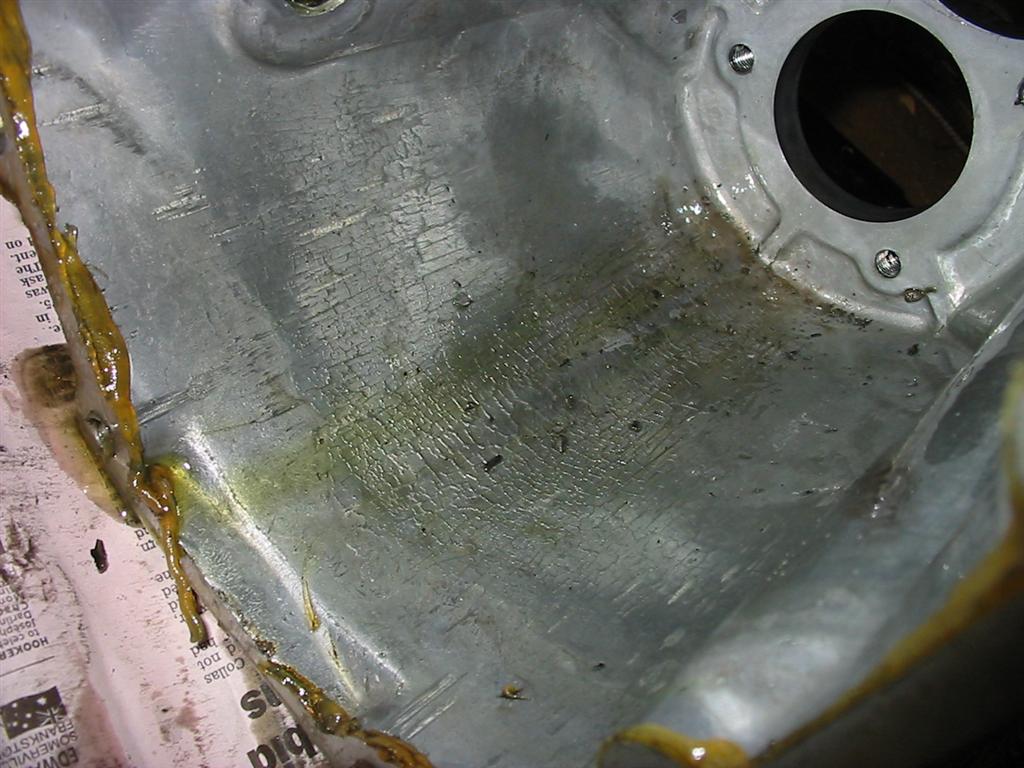

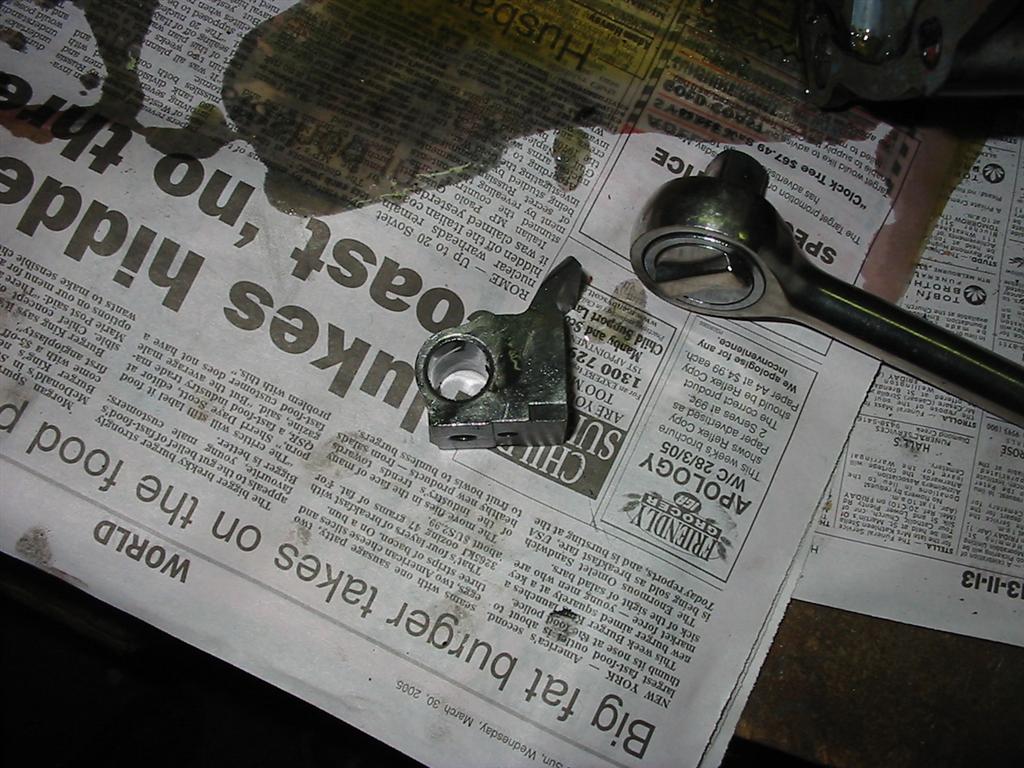

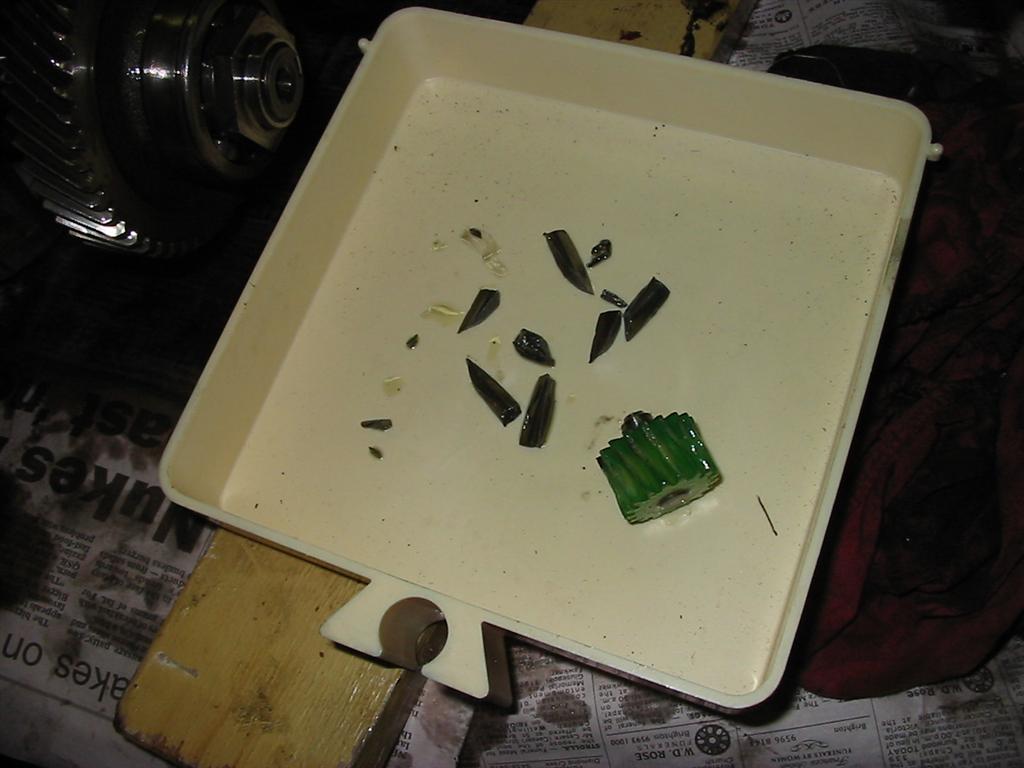

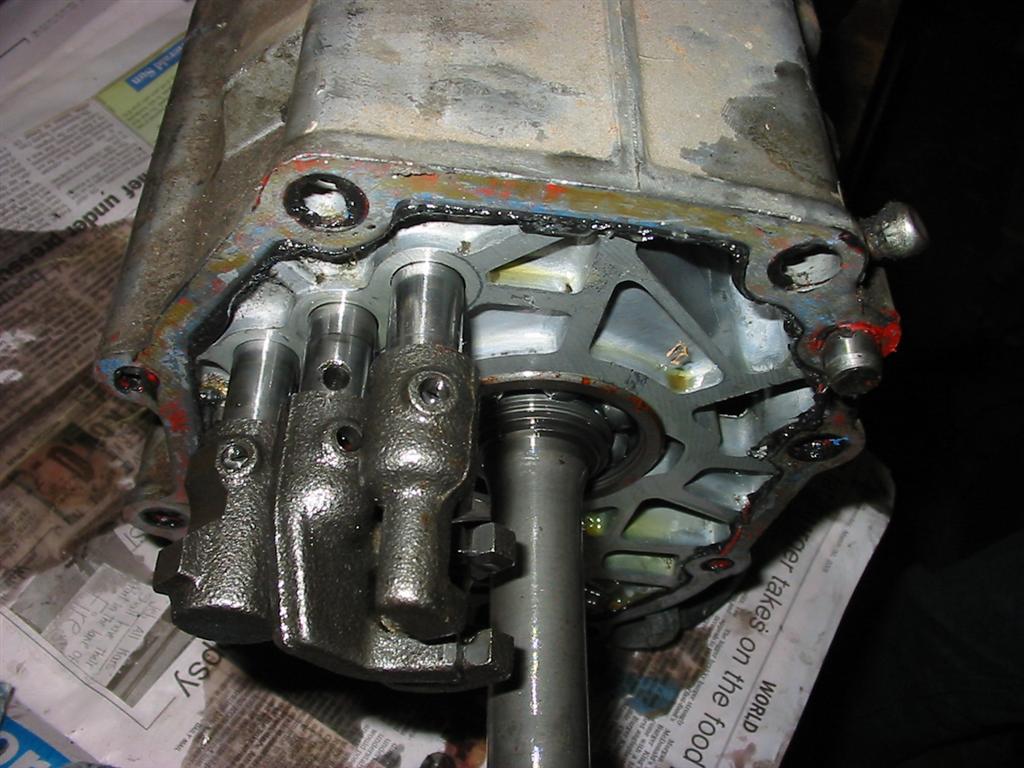

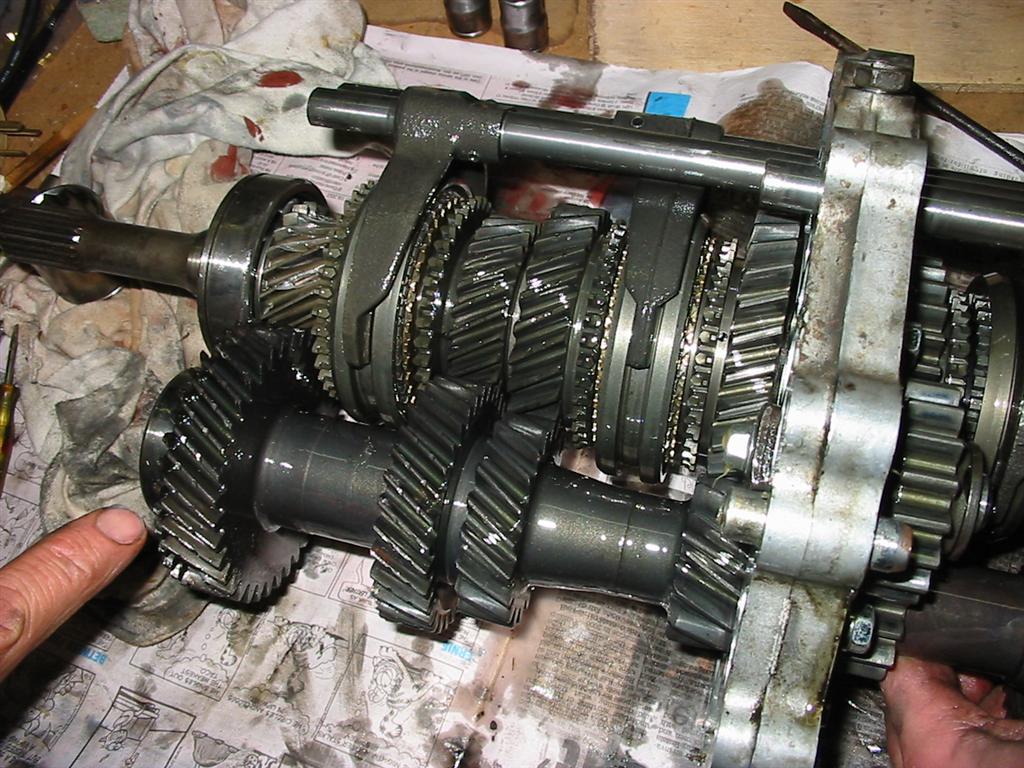

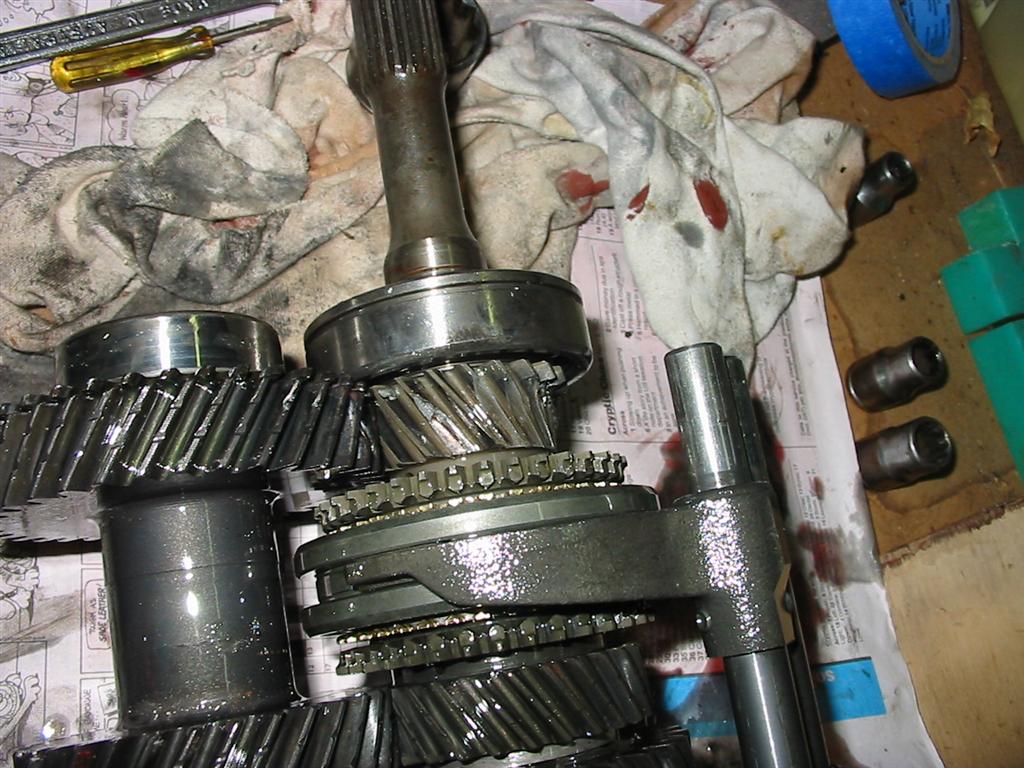

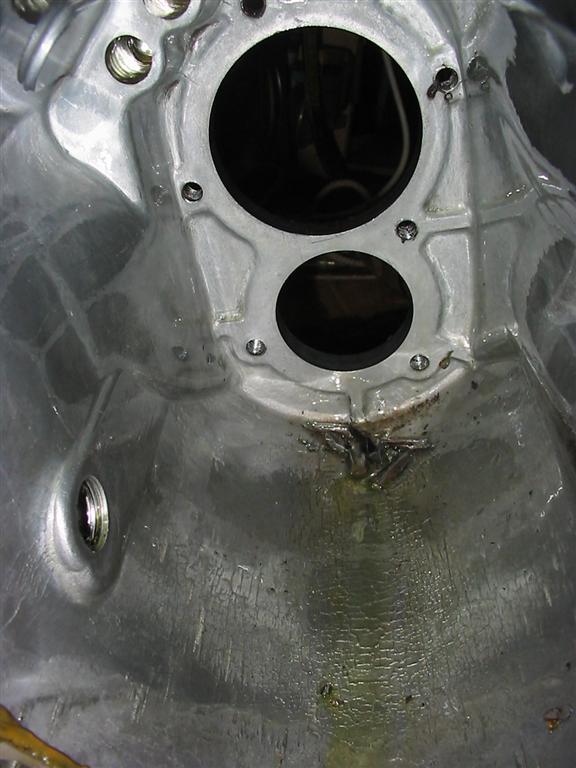

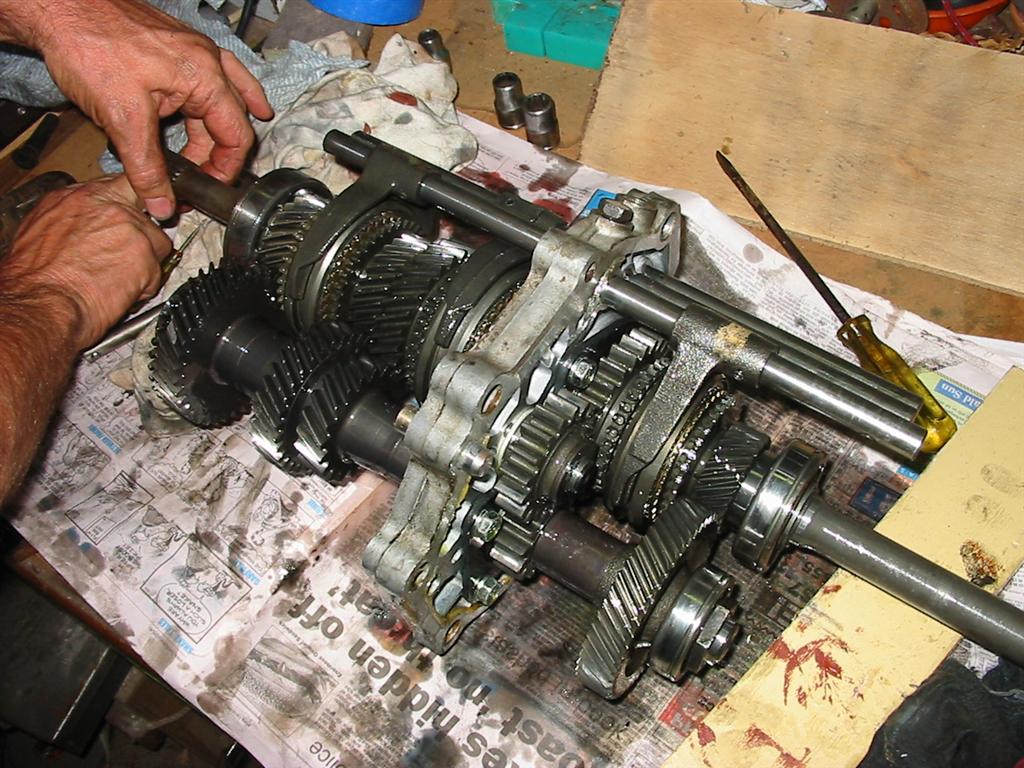

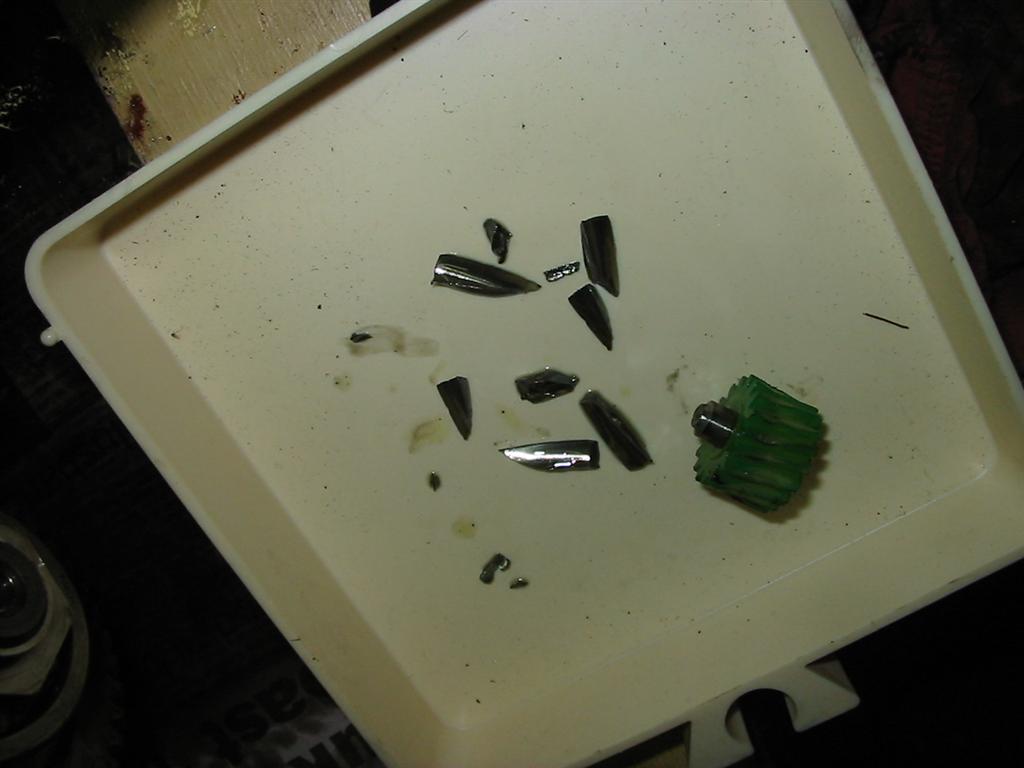

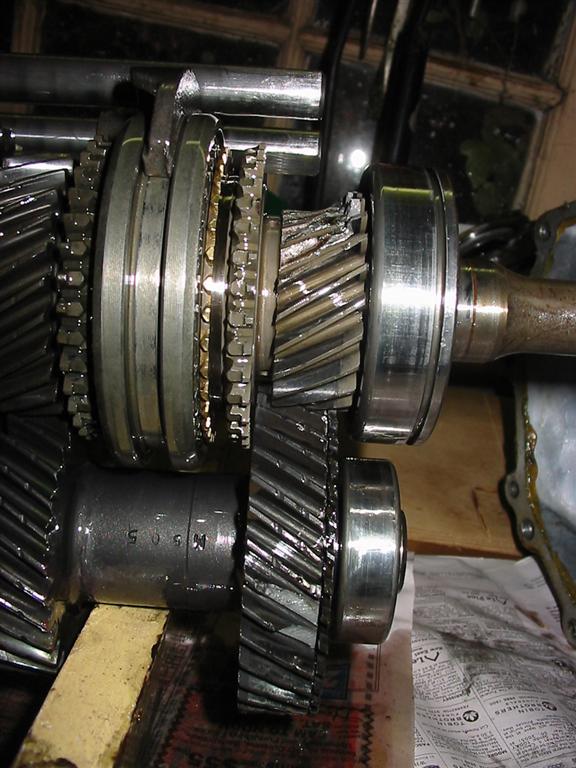

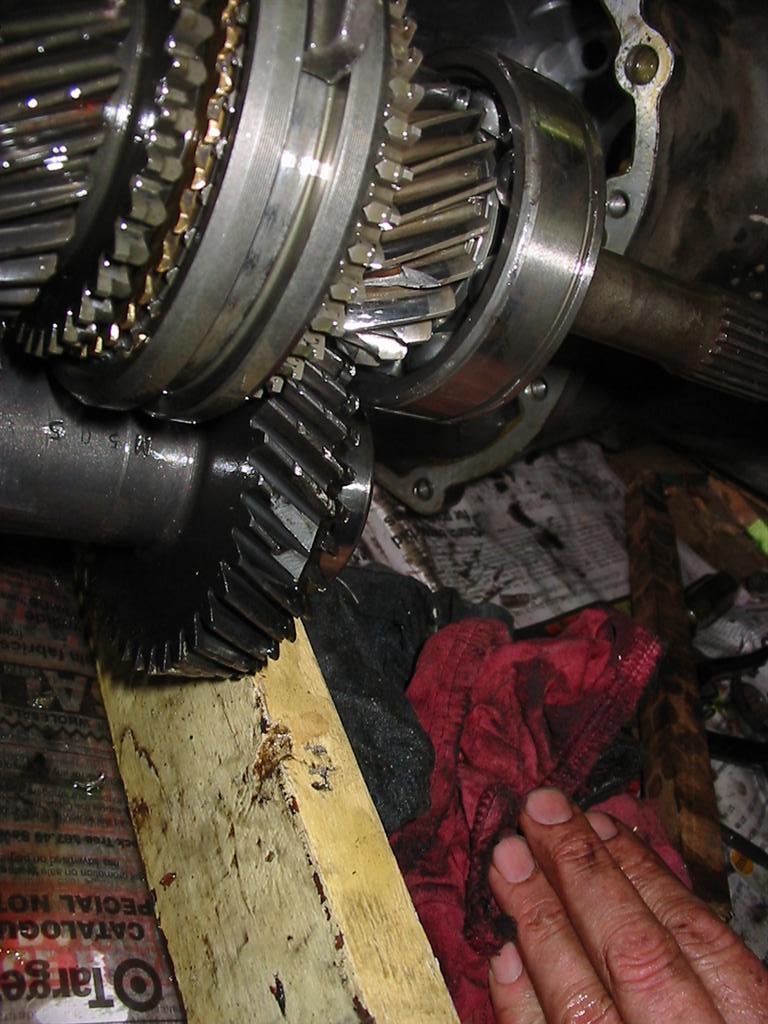

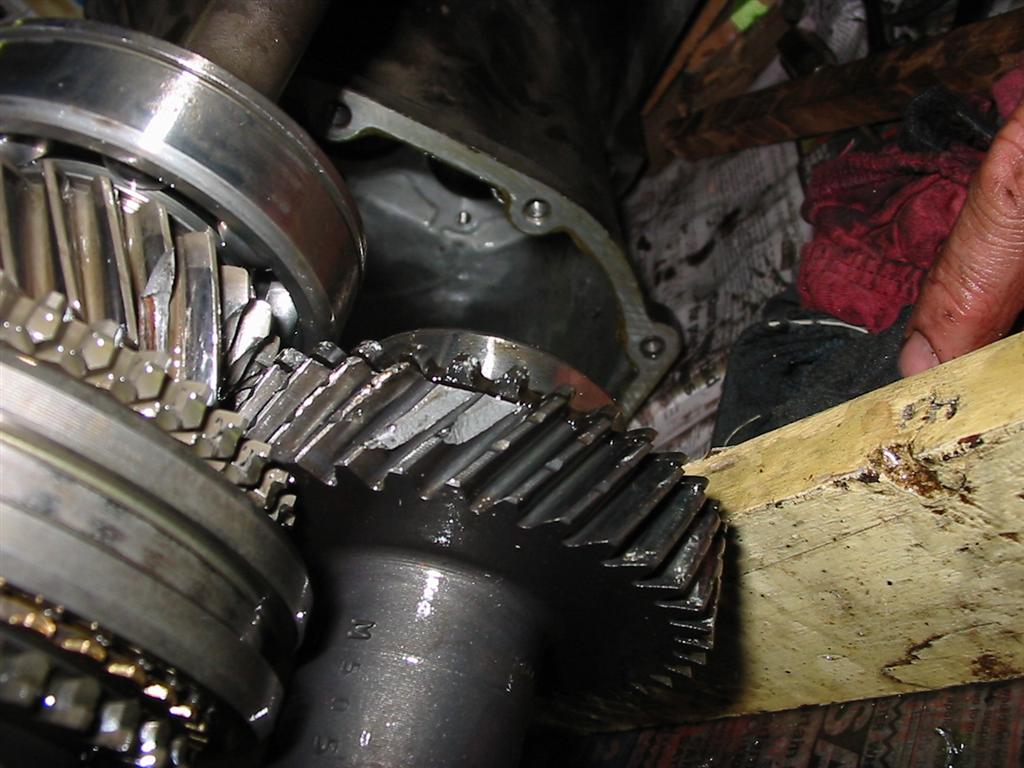

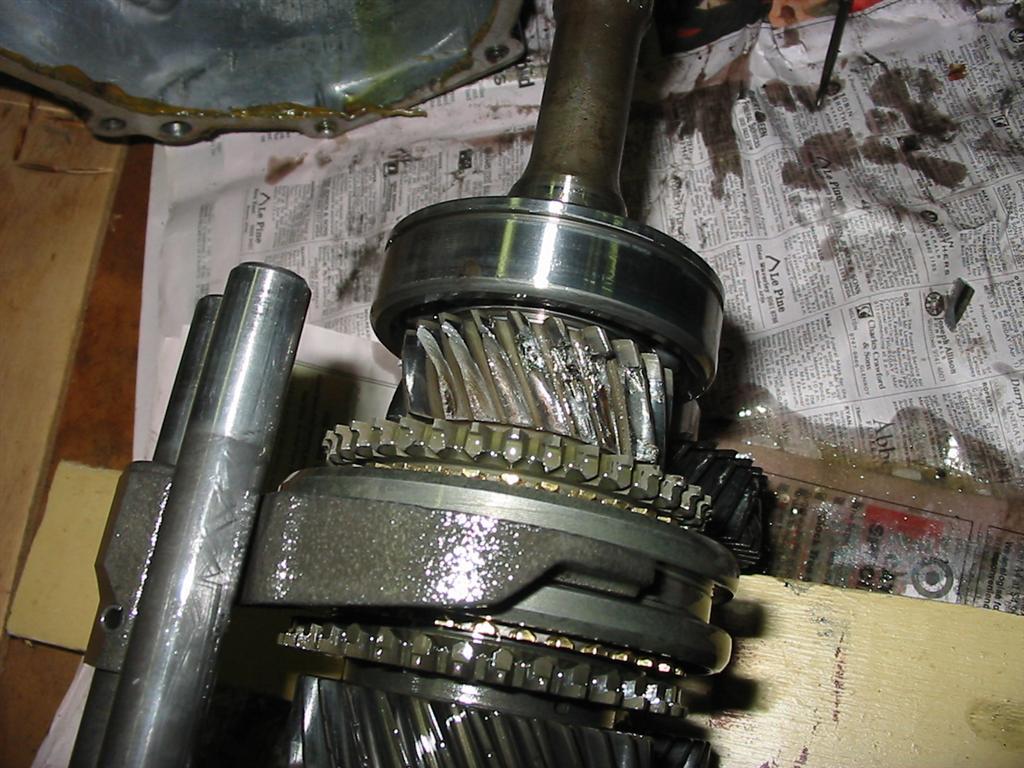

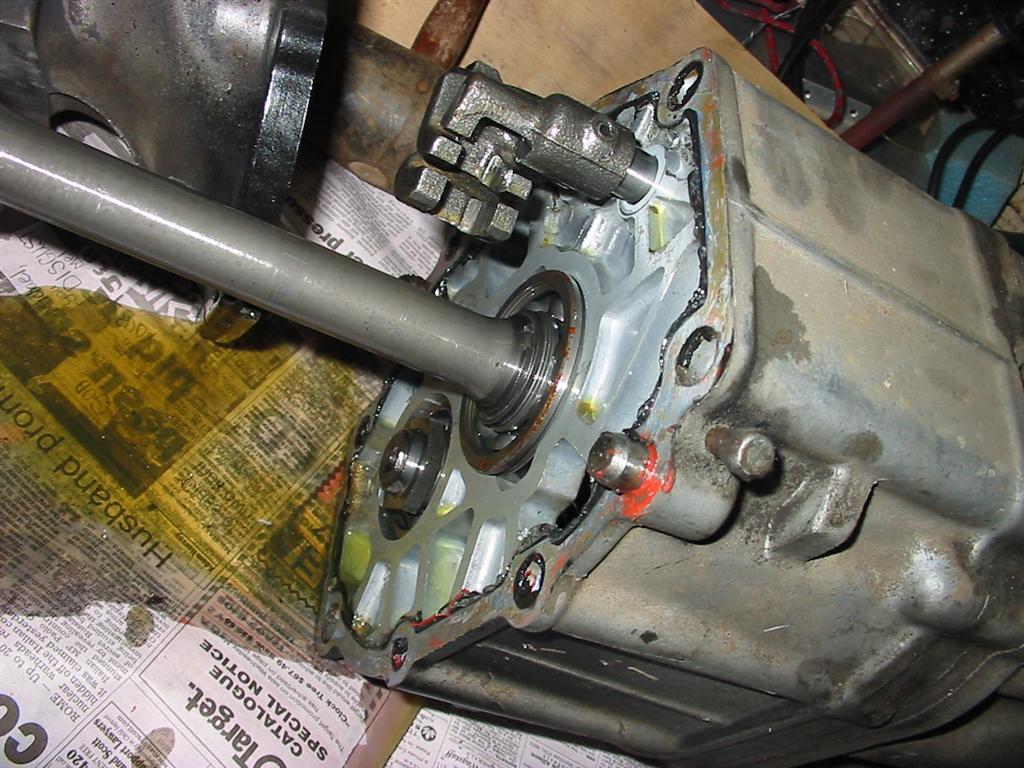

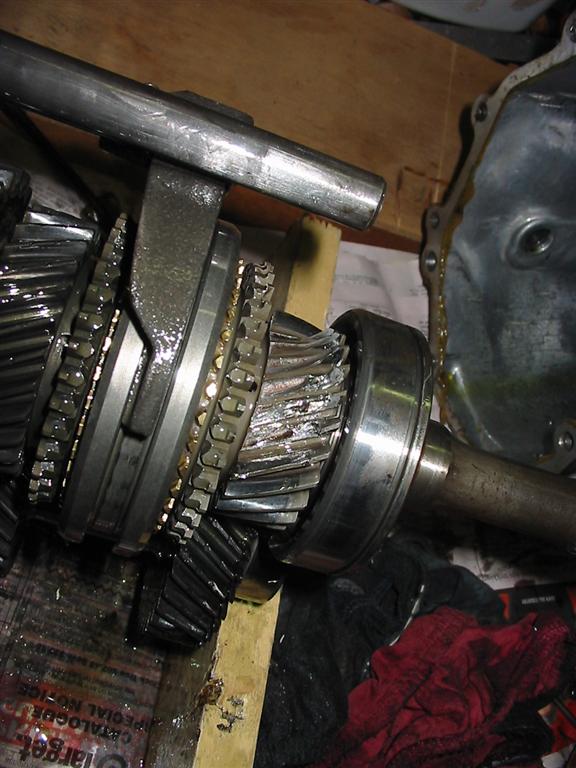

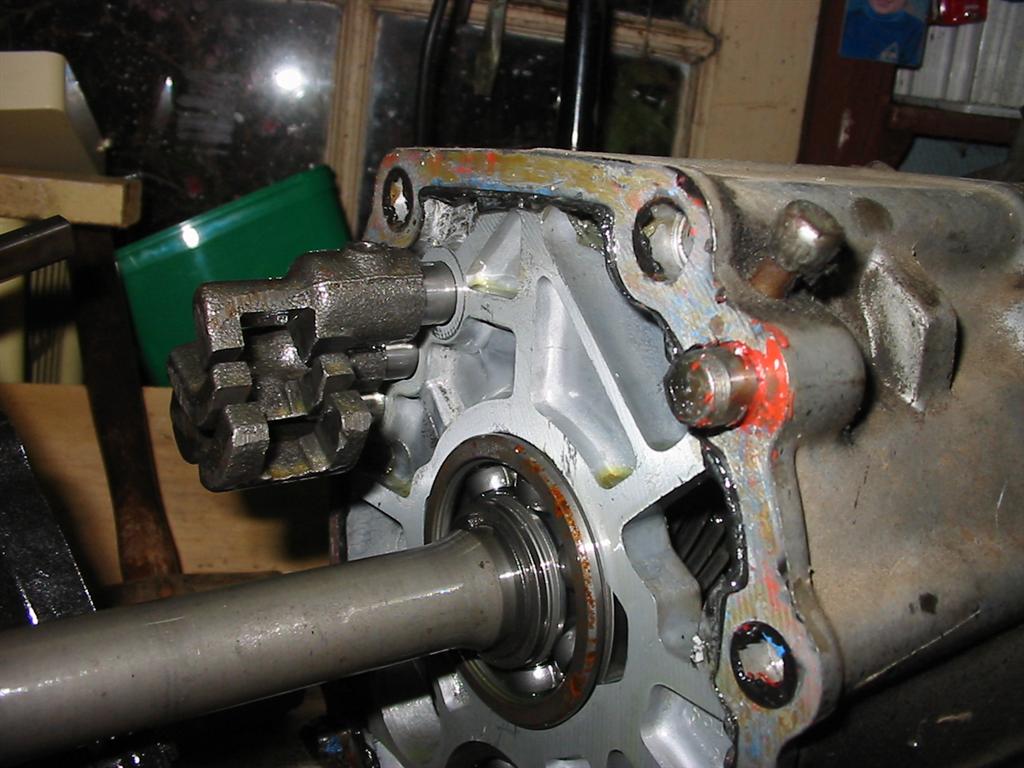

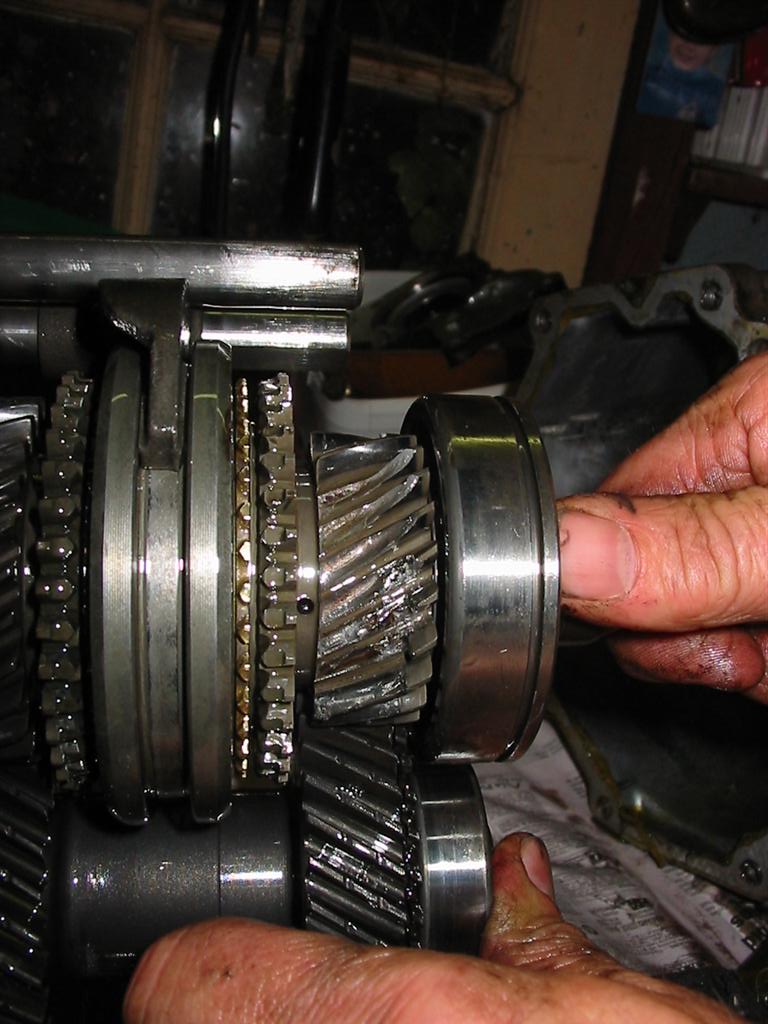

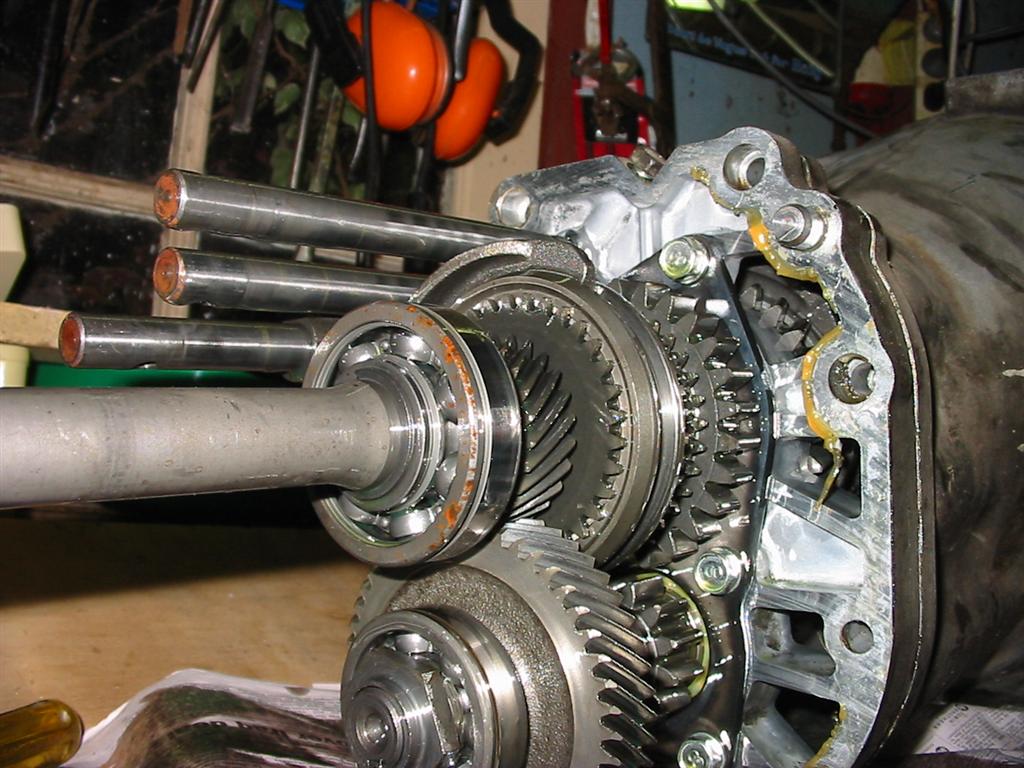

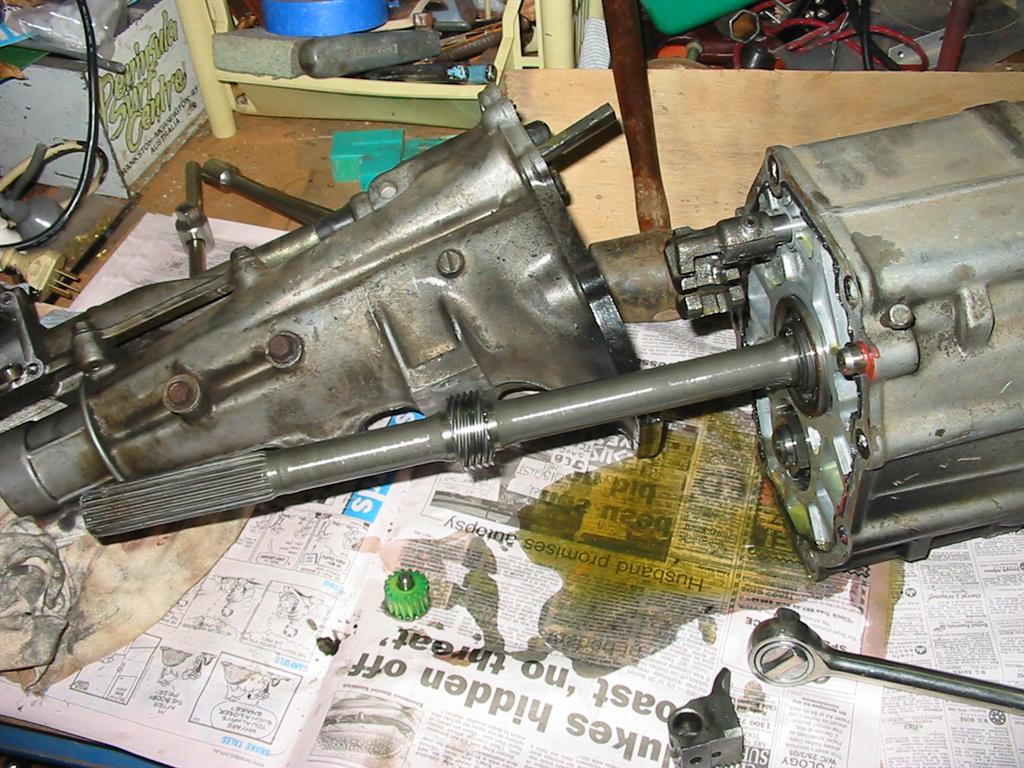

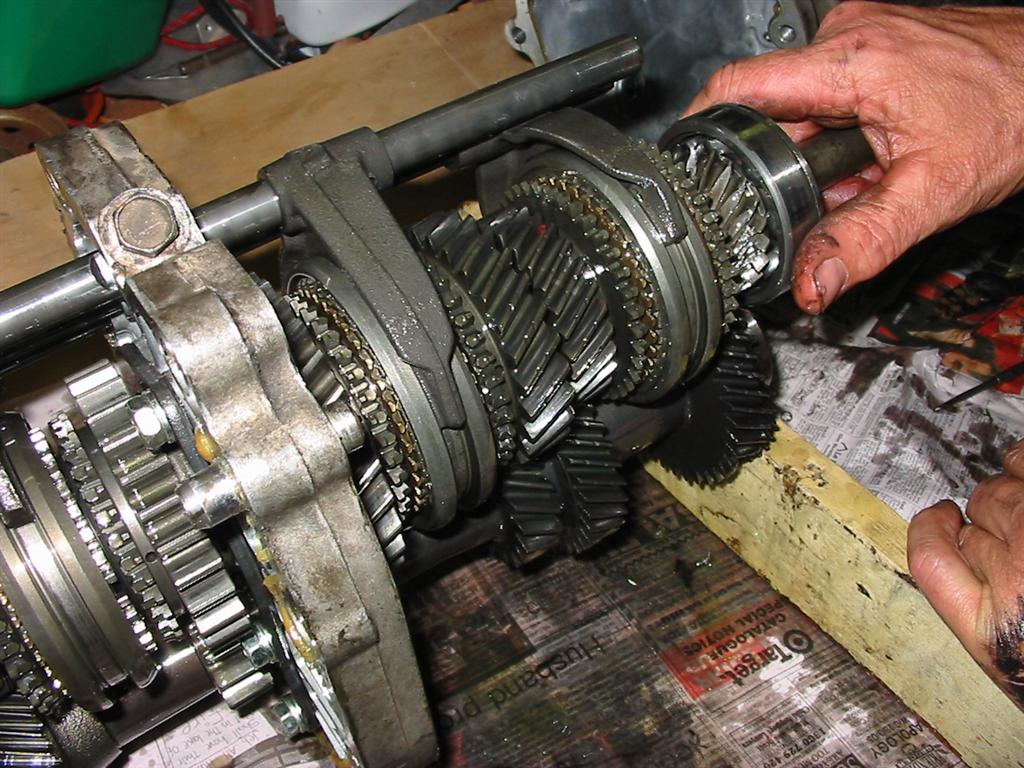

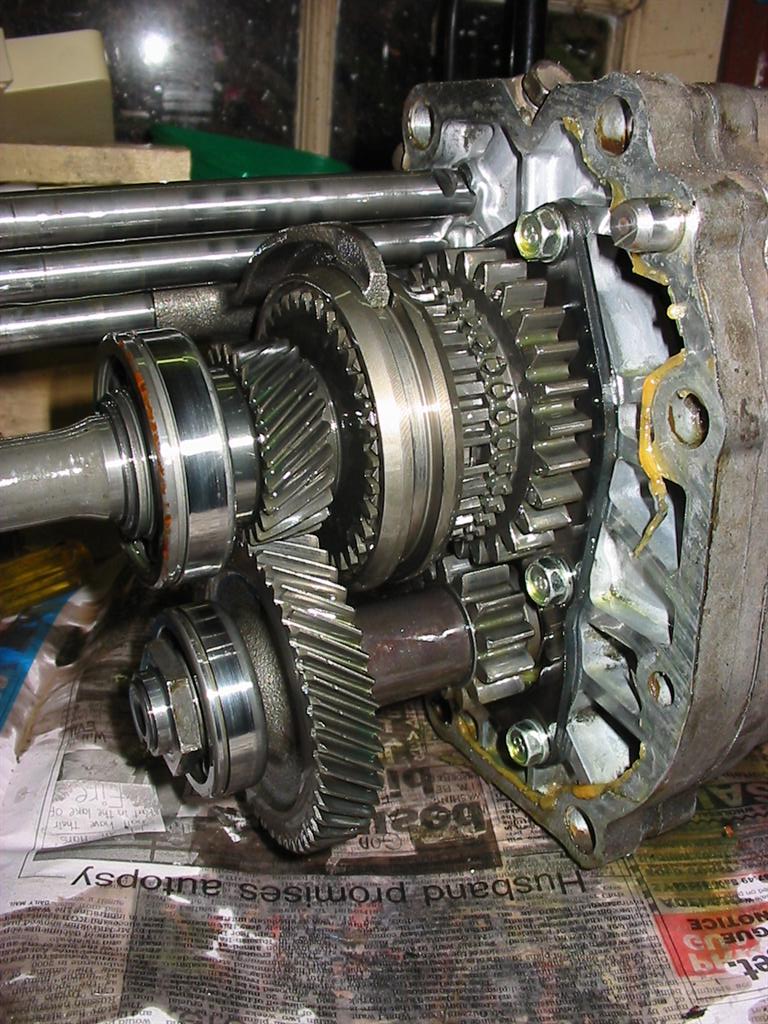

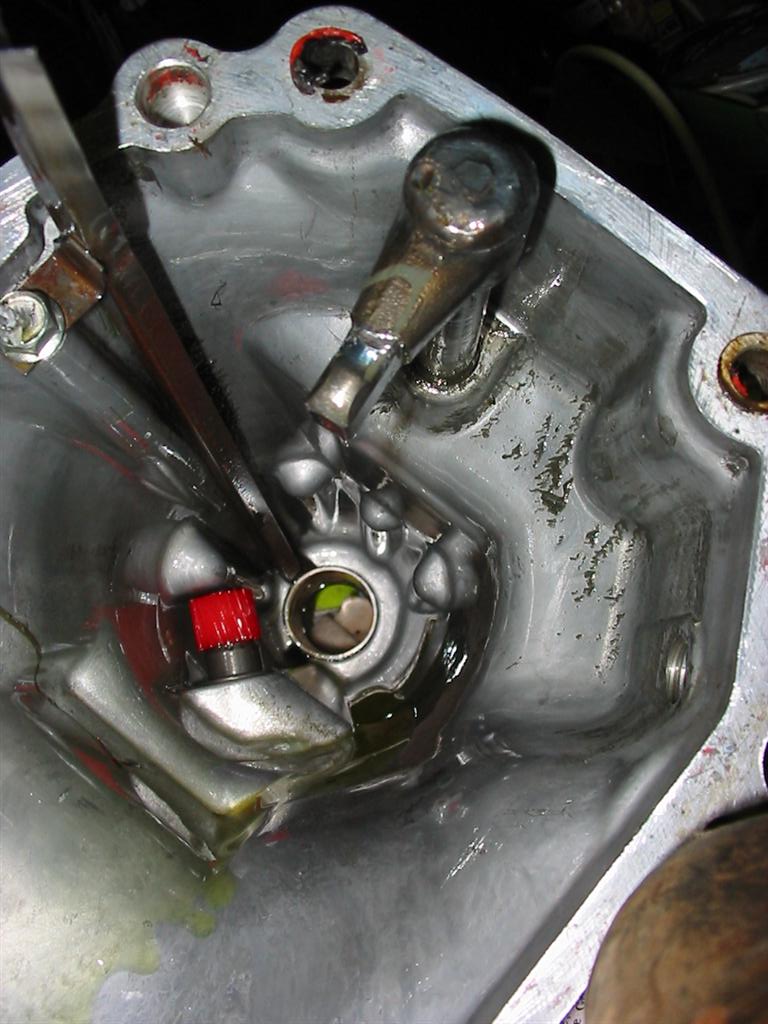

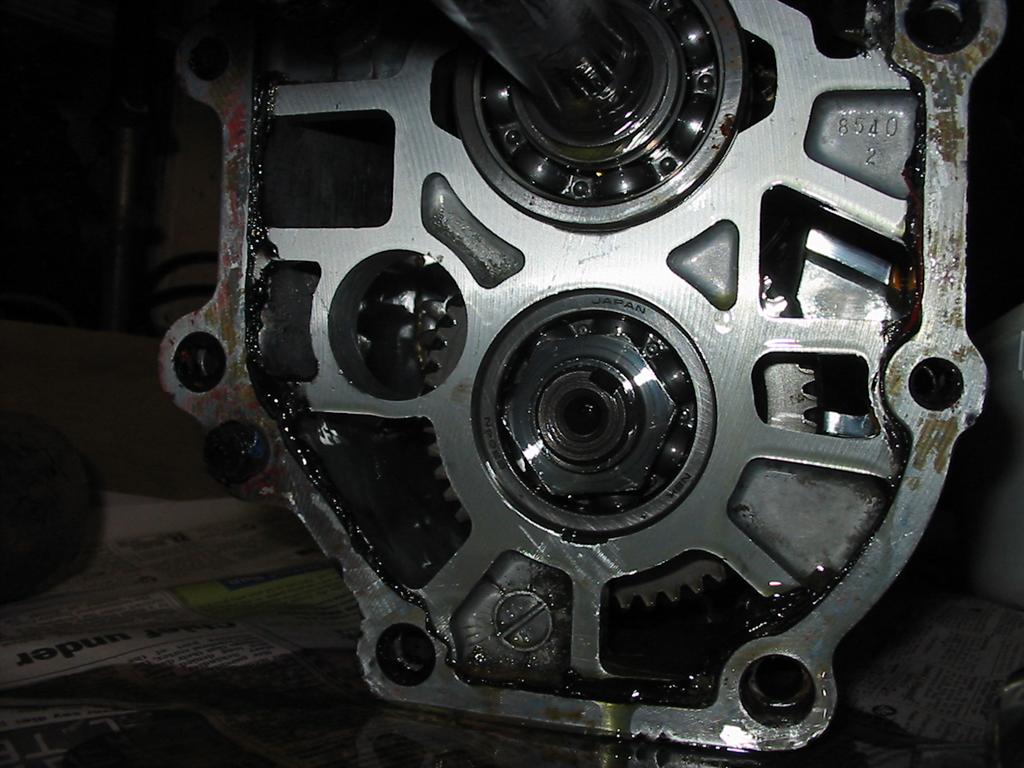

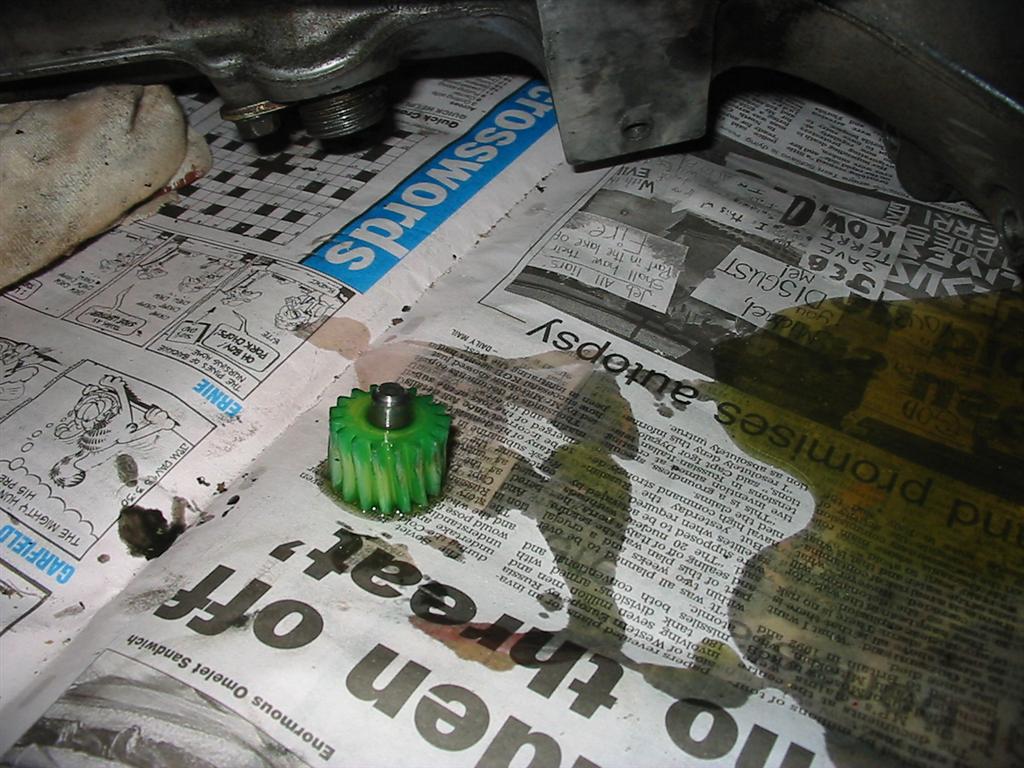

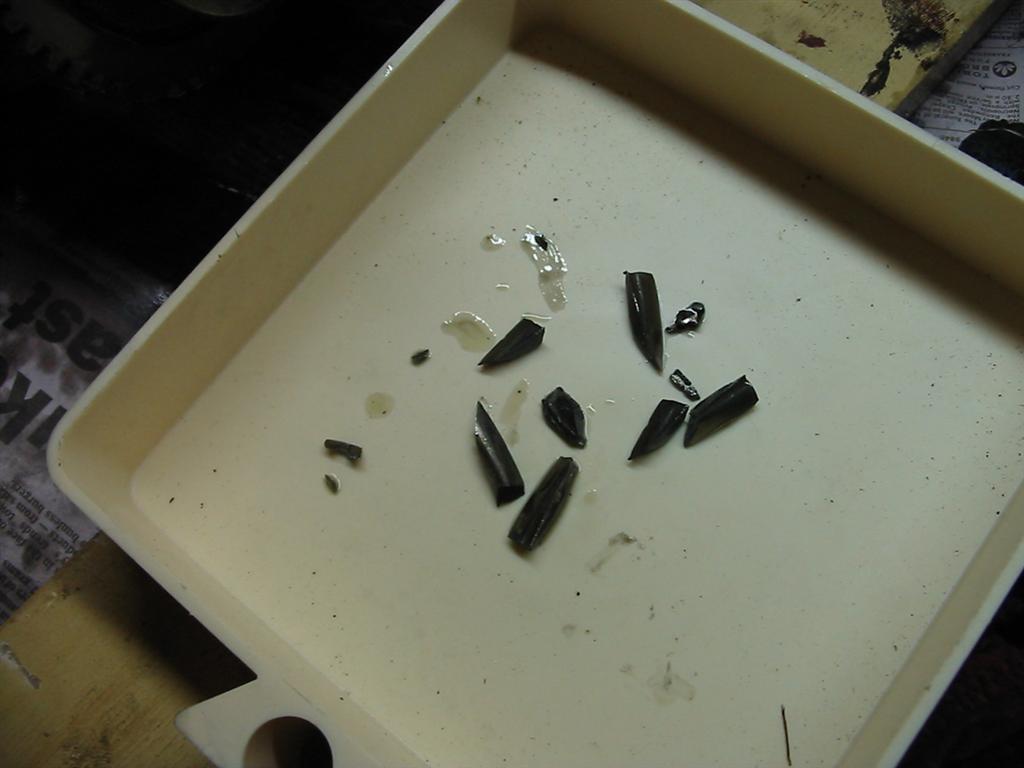

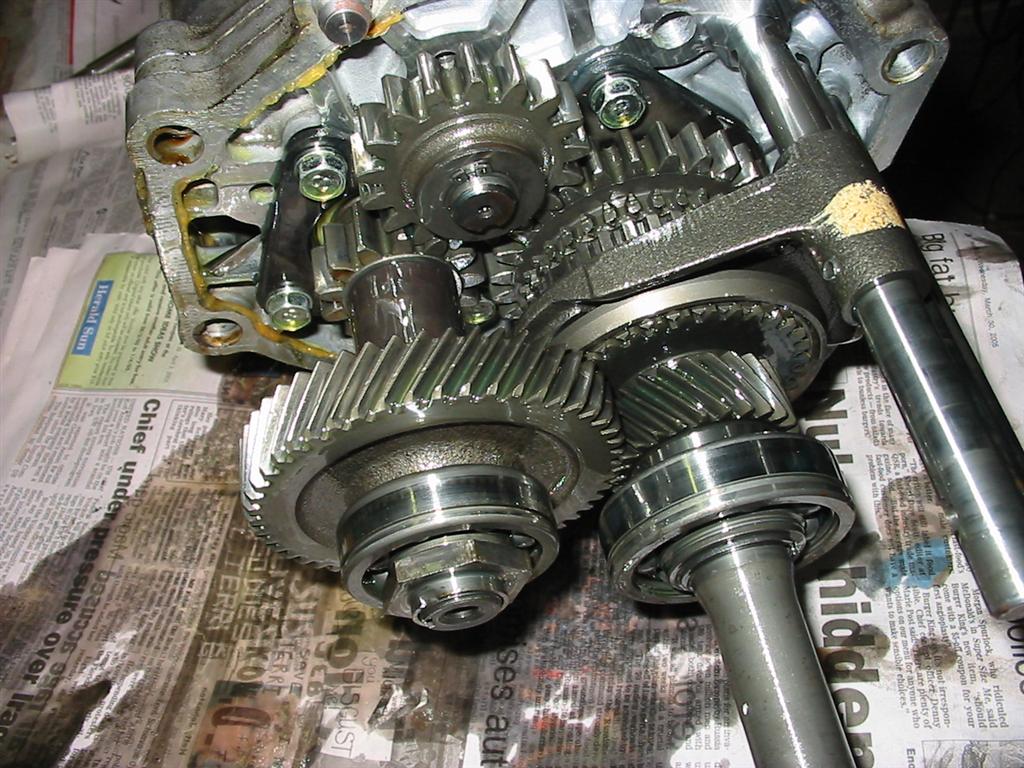

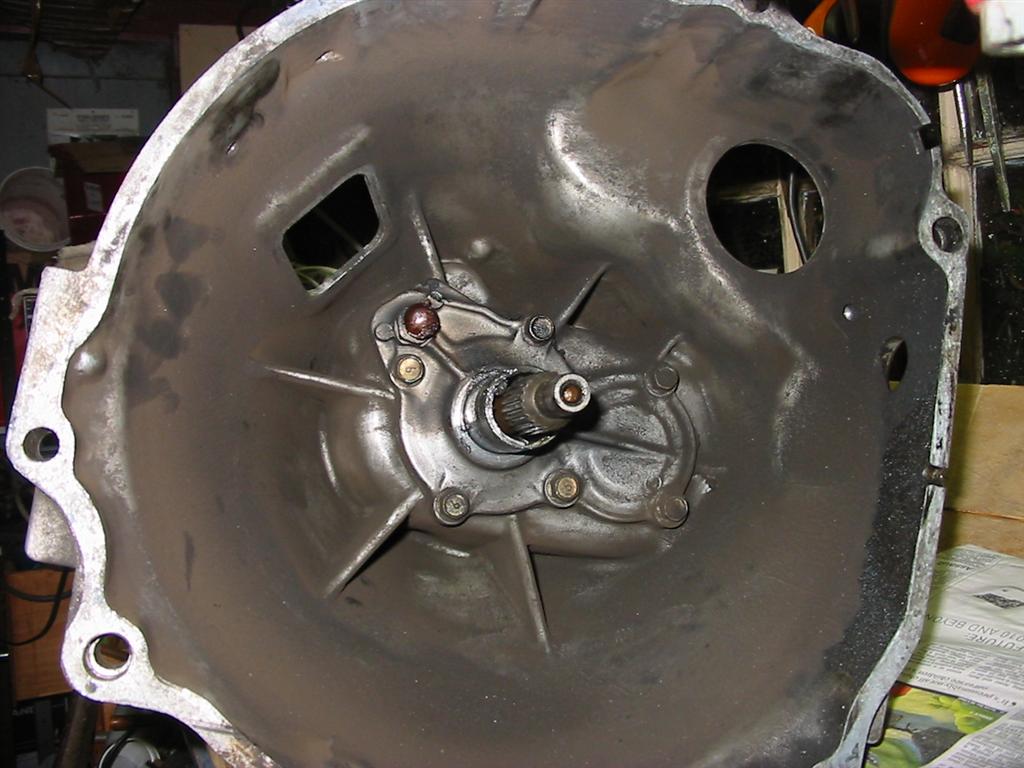

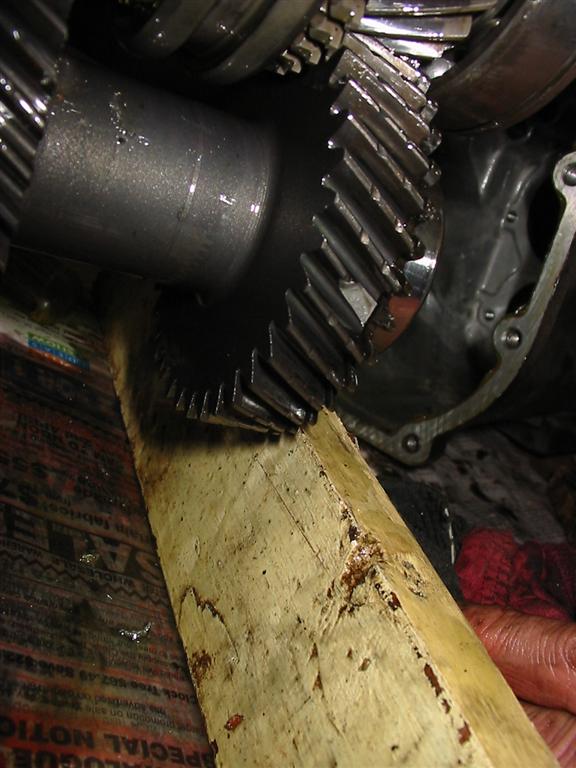

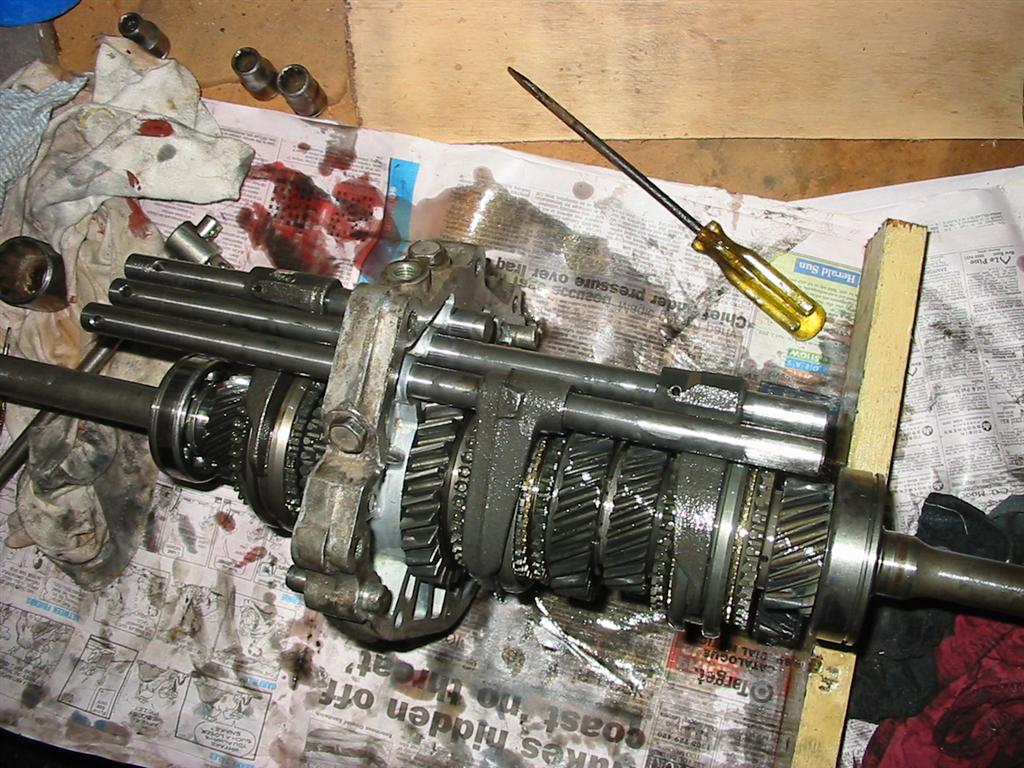

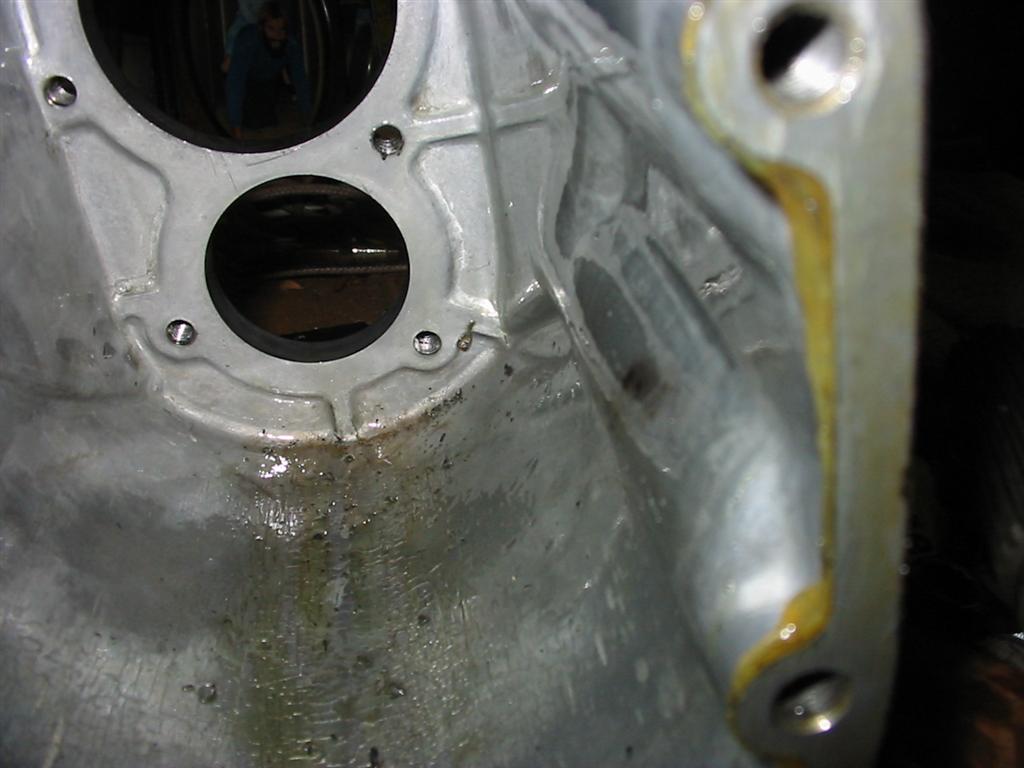

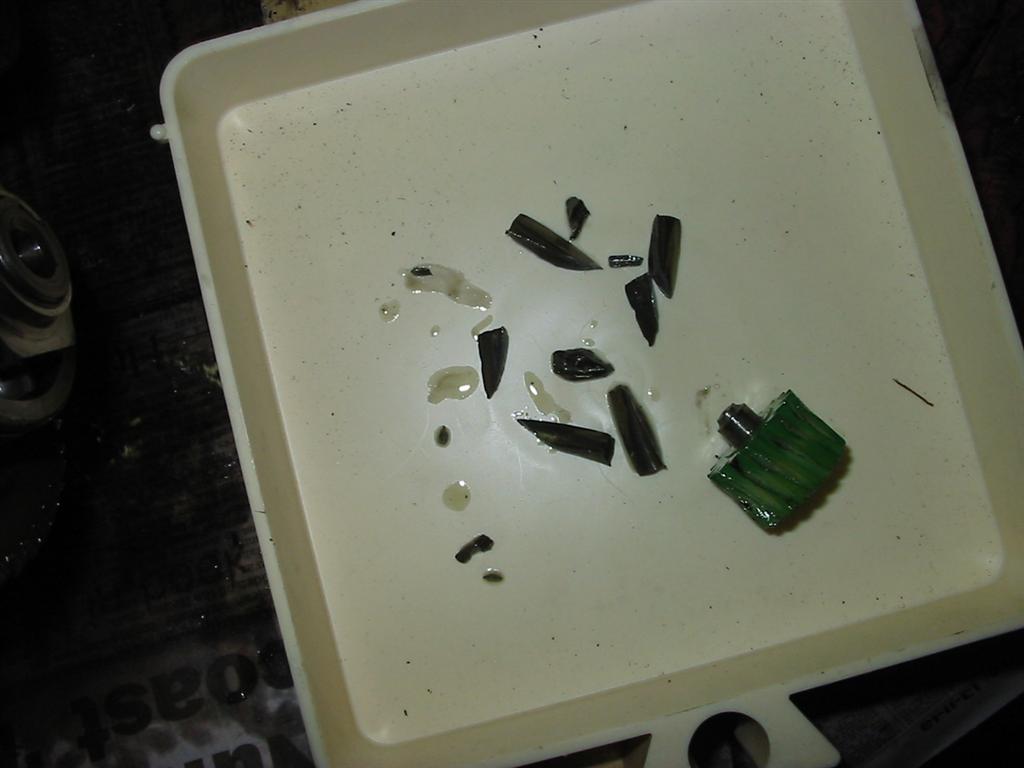

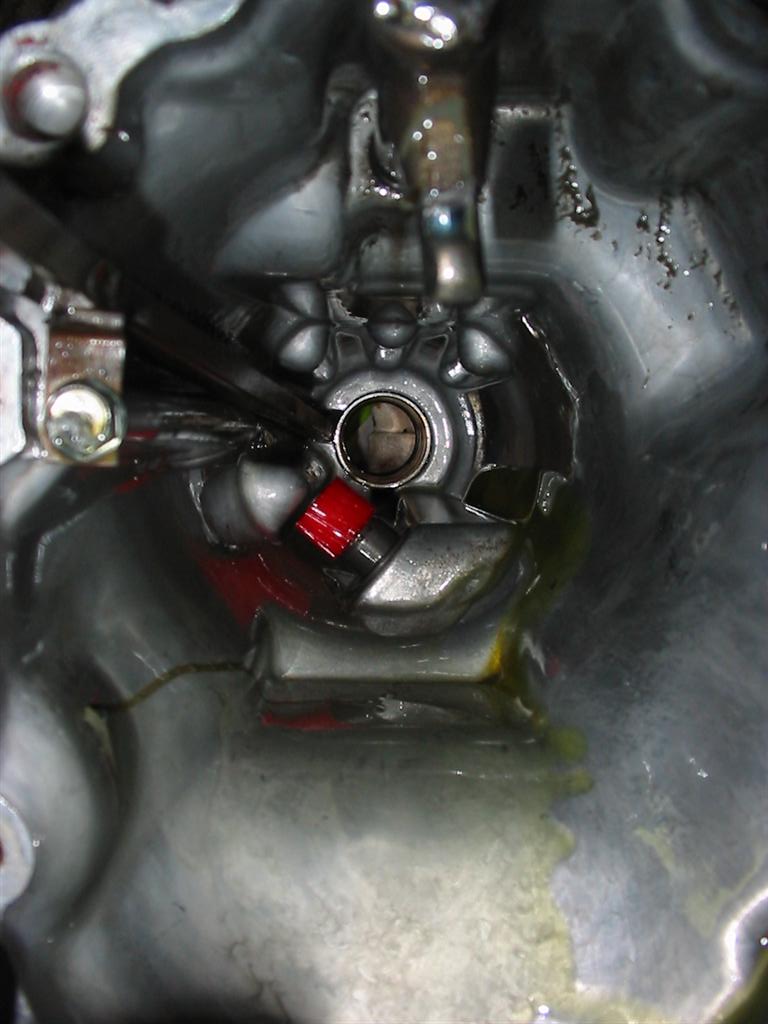

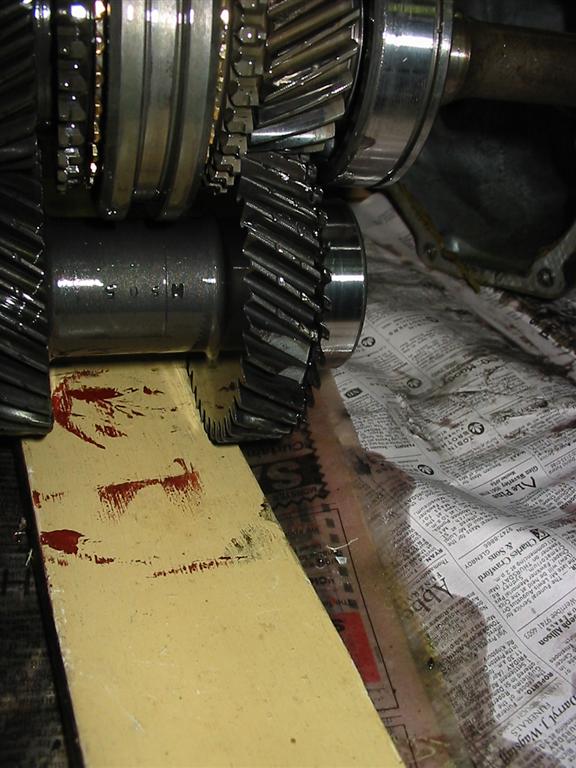

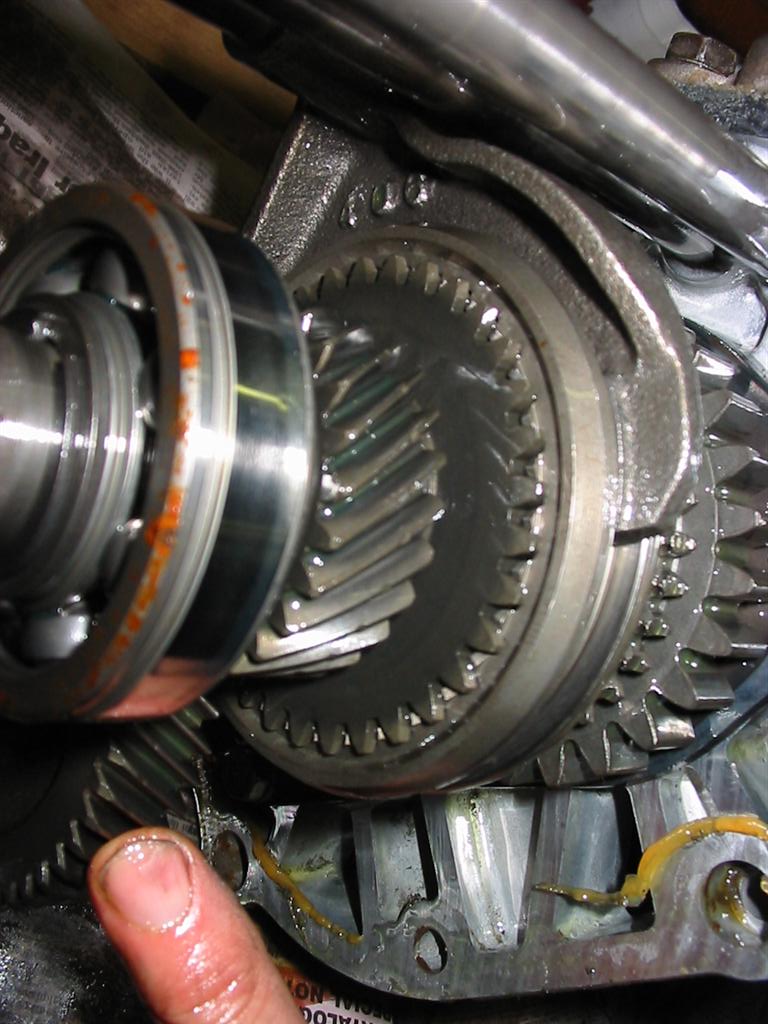

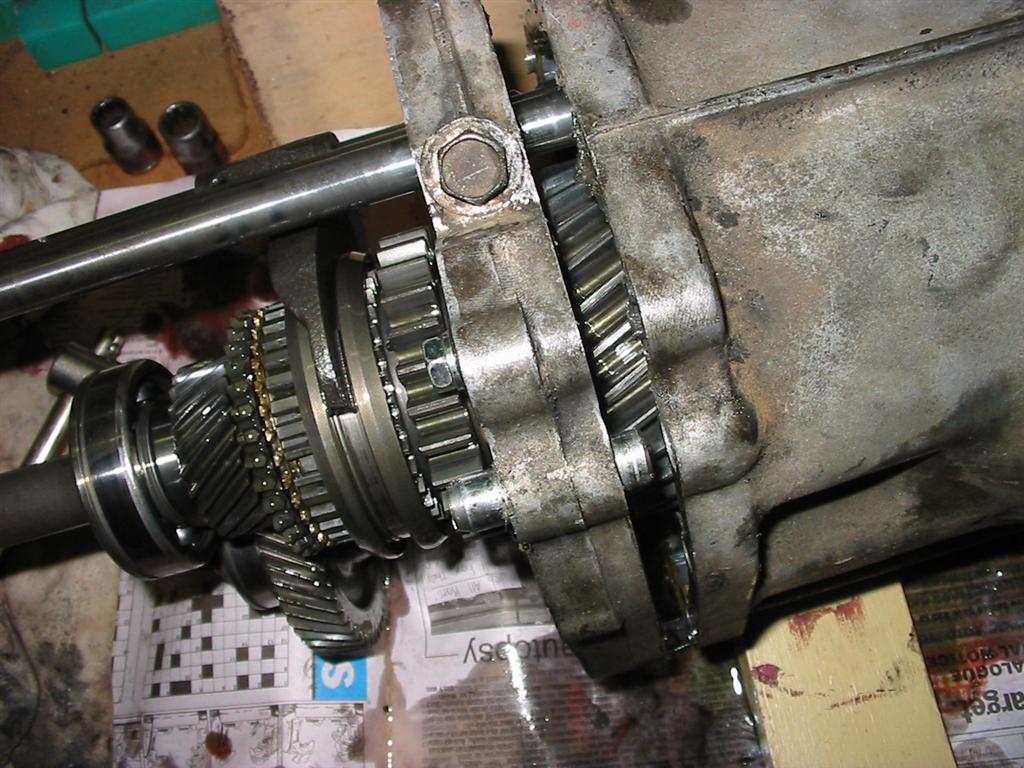

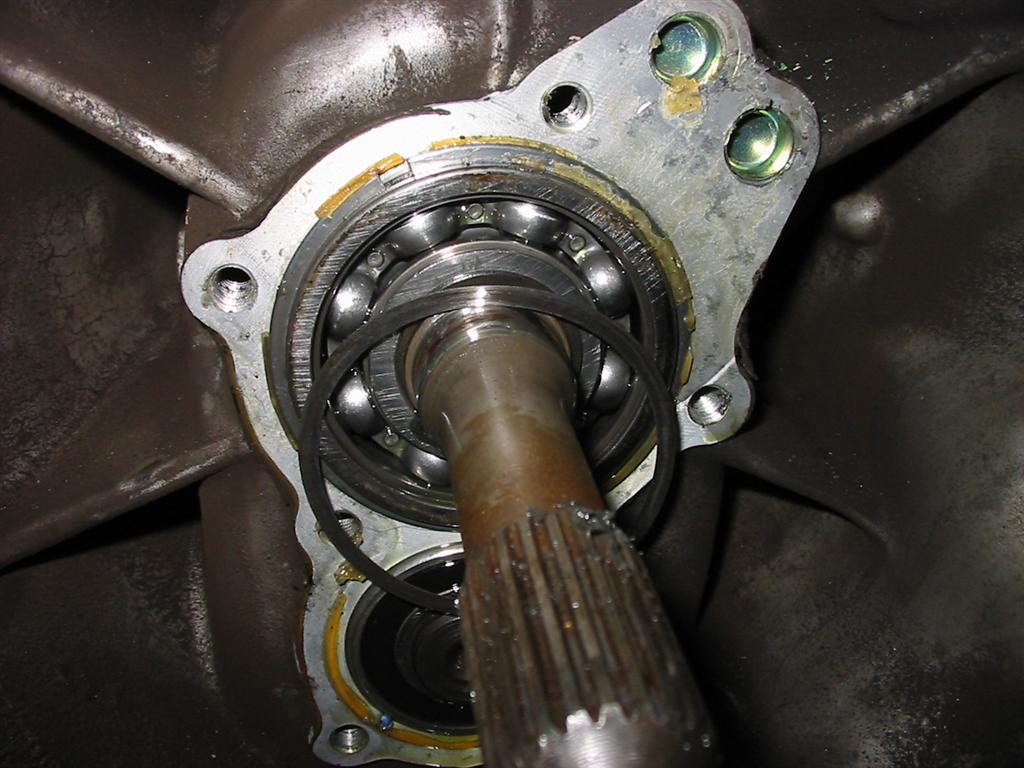

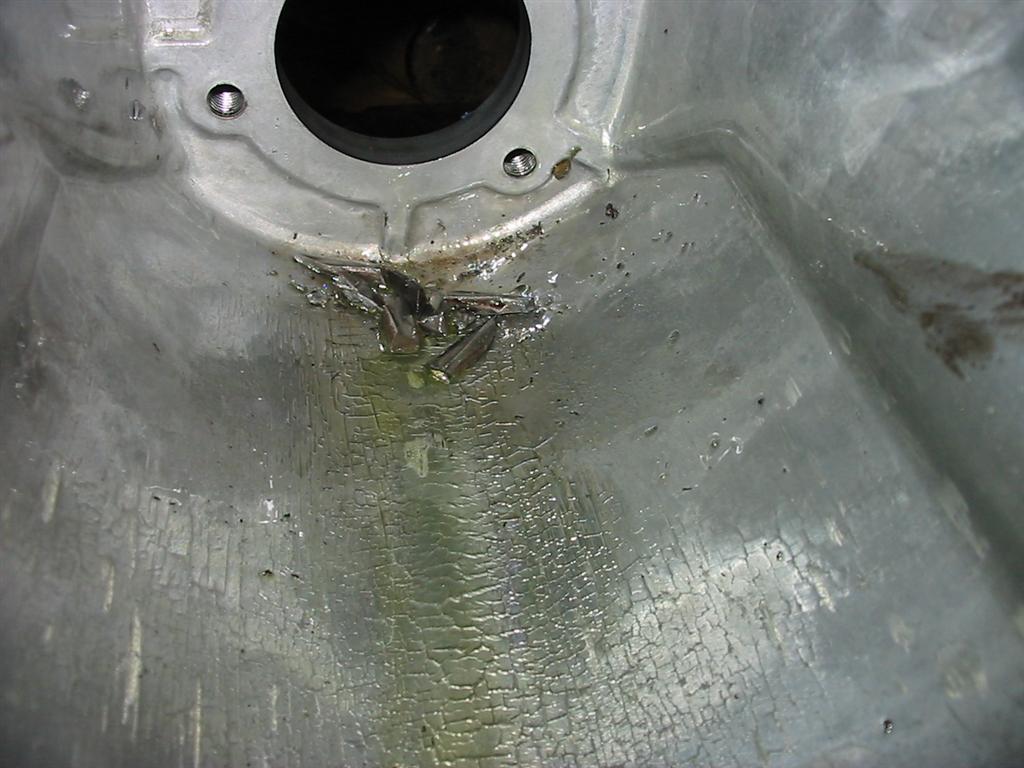

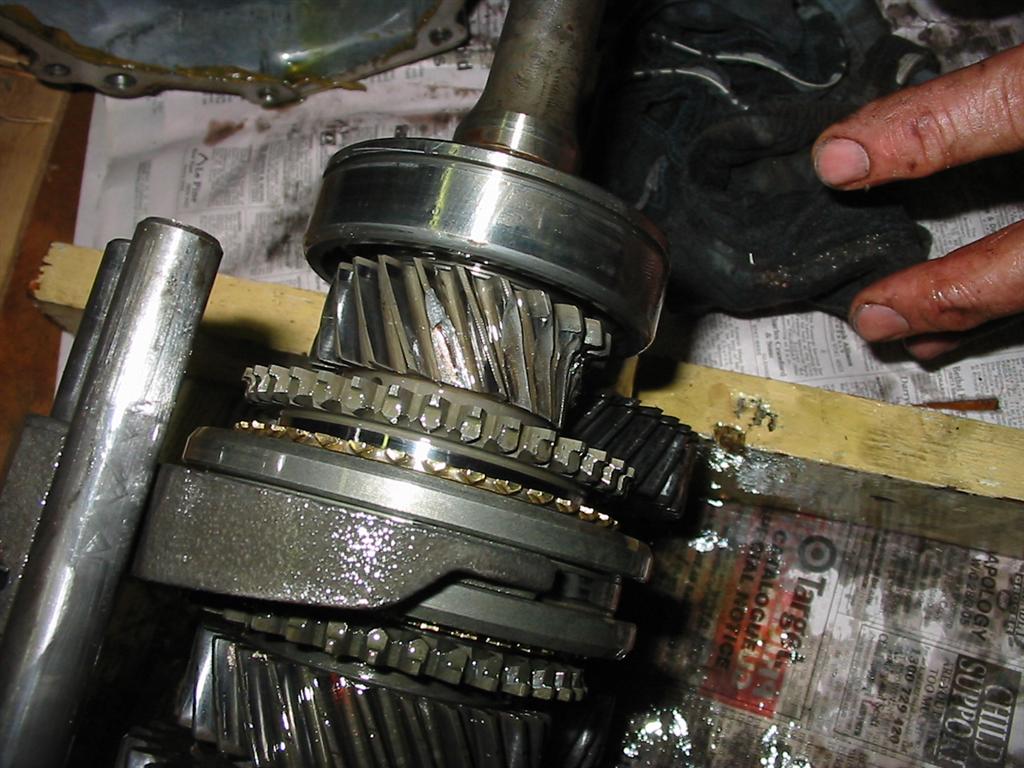

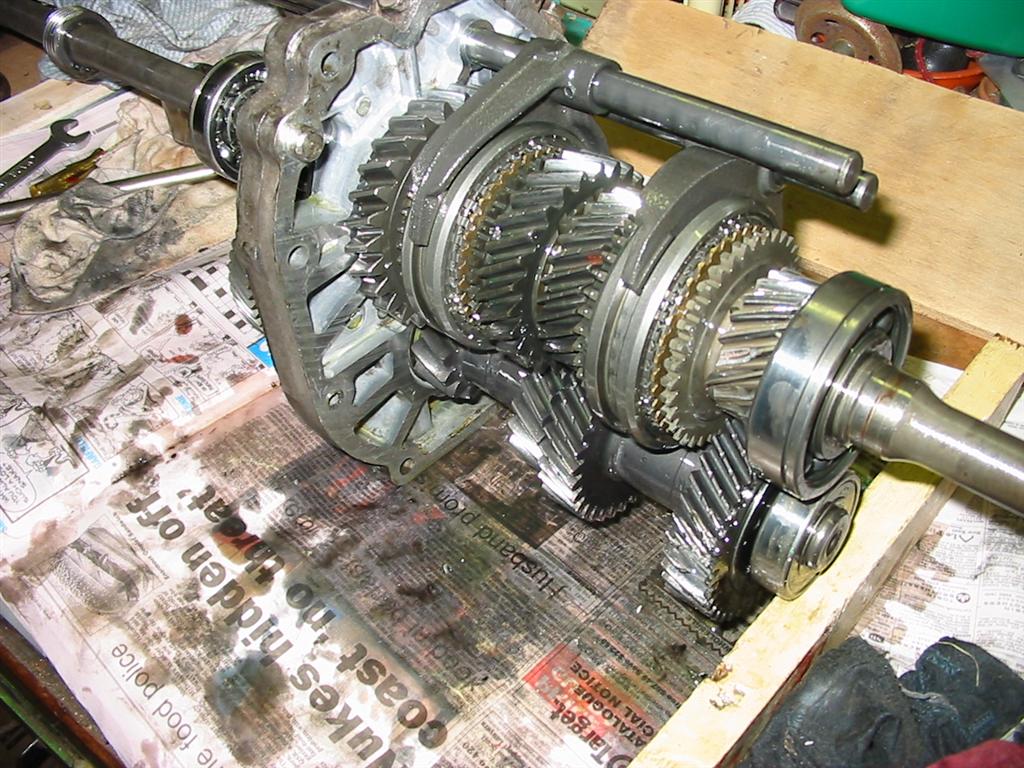

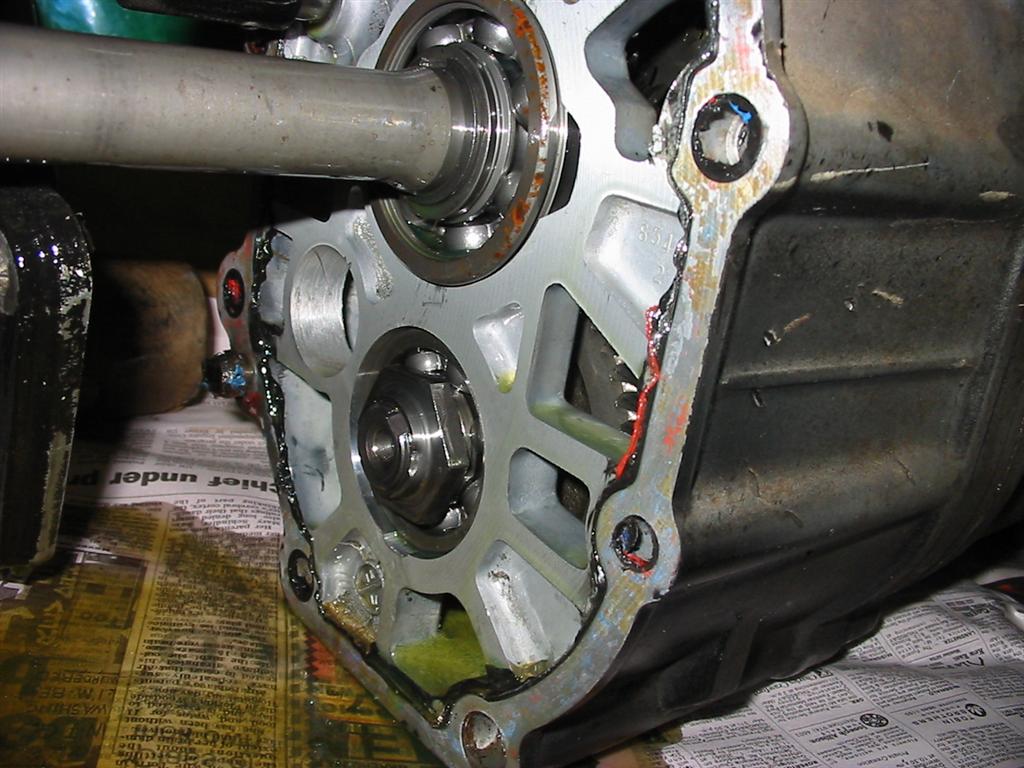

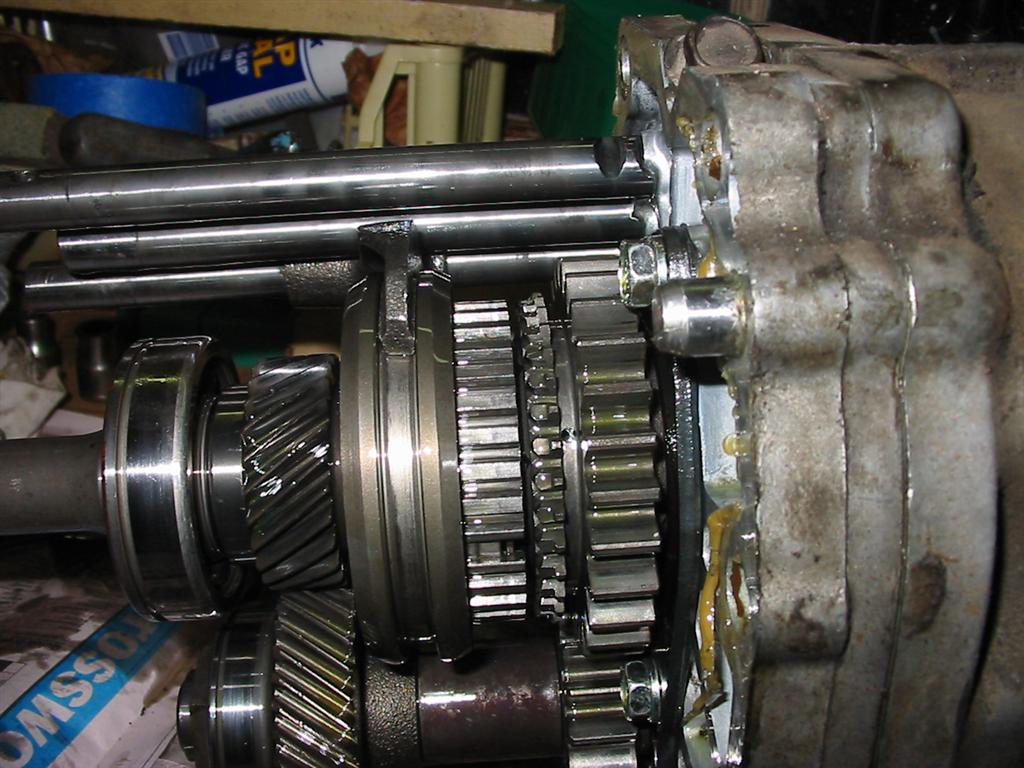

gearmashthumb.JPG - 459x347 - 27Kb - 2005/04/13 transmission_old 001.jpg - 1024x768 - 100Kb - 2005/04/13 transmission_old 002.jpg - 1024x768 - 114Kb - 2005/04/13 transmission_old 003.jpg - 1024x768 - 108Kb - 2005/04/13 transmission_old 004.jpg - 1024x768 - 106Kb - 2005/04/13 transmission_old 005.jpg - 768x1024 - 75Kb - 2005/04/13 transmission_old 006 rear extension housing.jpg - 768x1024 - 104Kb - 2005/04/13 transmission_old 007.jpg - 1024x768 - 144Kb - 2005/04/13 transmission_old 008.jpg - 1024x768 - 149Kb - 2005/04/13 transmission_old 009.jpg - 1024x768 - 145Kb - 2005/04/13 transmission_old 010.jpg - 1024x768 - 107Kb - 2005/04/13 transmission_old 011.jpg - 1024x768 - 123Kb - 2005/04/13 transmission_old 012.jpg - 1024x768 - 161Kb - 2005/04/13 transmission_old 013.jpg - 1024x768 - 106Kb - 2005/04/13 transmission_old 014.jpg - 1024x768 - 101Kb - 2005/04/13 transmission_old 015.jpg - 1024x768 - 117Kb - 2005/04/13 transmission_old 016 reverse and fifth.jpg - 768x1024 - 164Kb - 2005/04/13 transmission_old 017.jpg - 768x1024 - 108Kb - 2005/04/13 transmission_old 018.jpg - 1024x768 - 125Kb - 2005/04/13 transmission_old 019.jpg - 1024x768 - 126Kb - 2005/04/13 transmission_old 020.jpg - 1024x768 - 136Kb - 2005/04/13 transmission_old 021.jpg - 1024x768 - 166Kb - 2005/04/13 transmission_old 022.jpg - 1024x768 - 113Kb - 2005/04/13 transmission_old 023.jpg - 1024x768 - 139Kb - 2005/04/13 transmission_old 024.jpg - 576x768 - 64Kb - 2005/04/13 transmission_old 025 fragments.jpg - 1024x768 - 99Kb - 2005/04/13 transmission_old 026 mash input gear.jpg - 768x1024 - 138Kb - 2005/04/13 transmission_old 027.jpg - 576x768 - 78Kb - 2005/04/13 transmission_old 028 overview.jpg - 1024x768 - 168Kb - 2005/04/13 transmission_old 029.jpg - 1024x768 - 137Kb - 2005/04/13 transmission_old 030.jpg - 1024x768 - 92Kb - 2005/04/13 transmission_old 031 input gear side.jpg - 576x768 - 82Kb - 2005/04/13 transmission_old 032.jpg - 1024x768 - 159Kb - 2005/04/13 transmission_old 033.jpg - 1024x768 - 127Kb - 2005/04/13 transmission_old 034.jpg - 768x1024 - 102Kb - 2005/04/13 transmission_old 035.jpg - 768x1024 - 118Kb - 2005/04/13 transmission_old 036.jpg - 576x768 - 73Kb - 2005/04/13 transmission_old 037.jpg - 576x768 - 68Kb - 2005/04/13 transmission_old 038 first gear.jpg - 1024x768 - 110Kb - 2005/04/13 transmission_old 039.jpg - 1024x768 - 176Kb - 2005/04/13 transmission_old 040.jpg - 1024x768 - 168Kb - 2005/04/13 transmission_old 041.jpg - 1024x768 - 167Kb - 2005/04/13 transmission_old 042.jpg - 1024x768 - 73Kb - 2005/04/13 transmission_old 043.jpg - 1024x768 - 118Kb - 2005/04/13 transmission_old 044.jpg - 1024x768 - 115Kb - 2005/04/13 transmission_old 045.jpg - 1024x768 - 57Kb - 2005/04/13 transmission_old 046.jpg - 1024x768 - 70Kb - 2005/04/13 transmission_old 047.jpg - 1024x768 - 54Kb - 2005/04/13 transmission_old 048.jpg - 1024x768 - 53Kb - 2005/04/13 transmission_old 049.jpg - 1024x768 - 53Kb - 2005/04/13 transmission_old 050.jpg - 1024x768 - 53Kb - 2005/04/13 transmission_old 051.jpg - 1024x768 - 148Kb - 2005/04/13 transmission_old 052.jpg - 1024x768 - 164Kb - 2005/04/13
